2010年全球及中国CMOS摄像模组产业研究报告 >> 水清木华研究中心

　　2010年CMOS摄像模组产值相较2009年大幅度增加，驱动力来自三方面。一是手机摄像像素值大幅度增加，200万像素成为主流；预计2011年，300万像素将成为主流；预计2013年，500万像素将成为主流。二是智能手机出货量大幅度增加，智能手机的照相像素普遍高于普通手机，平均像素超过300万像素。三是3G网络的全面推广使得视频通话成为可能，双摄像头手机大量上市。

　　2010年CMOS传感器领域，Omnivision依靠BSI技术获得苹果的青睐，成为iPhone的独家供应商。Omnivision出货量和收入都大幅度增长，运营利润增加15倍以上，业内第一名的位置得到进一步巩固。展望2011年，苹果二代iPad极有可能采用双摄像头，iPhone的出货量也会大幅度增加，苹果已经包下Omnivision的BSI产品。

　　BSI已经成为CMOS传感器的下一轮标准。索尼最早发明BSI技术，Omnivision依靠台积电将其发扬广大，三星、SETI、APTINA等厂家也纷纷转进BSI技术。在技术转换期，产能会无法满足需求，尤其是笔记本电脑用的CMOS传感器利润微薄，厂家都不愿意生产，需求最为紧缺。预计2011年全年CMOS传感器都会处于紧缺状态。

　　CMOS摄像模组用镜头领域，台湾企业越战越勇，日本企业出现退步。大立光继续巩固其业内霸主的地位，收入远远抛离第二名，大者恒大的局势非常明显。排名第二的亚洲光学依靠大陆子公司乙太光学而出货量大增。日本的企业一方面面临日元大幅度升值，另一方面要面临台湾企业的激烈竞争。日本企业都是百亿美元级企业，对于不足其收入1%的CMOS摄像模组用镜头不会给予多少支持。如KMOT，2010年其CMOS摄像模组用镜头收入大幅度萎缩至2009年的1/3，富士能也有稍微下降。其余几家日本企业都有退出此领域的可能。

　　2010年的CMOS摄像模组用镜头市场，表现最惊艳的是玉晶光电。这家企业在2005年依靠摩托罗拉的V3 而风光无限，2006-2009年连续4年巨亏。但玉晶光电在2009年下半年通过了苹果的供应商认证，成为苹果CMOS摄像模组用镜头第二供应商商，2010年收入大幅度增加近250%。预计玉晶光电2011年收入将比2009年增加超过5倍还多，毛利率从-3%一举提高到22%。

　　2010年CMOS摄像模组组装领域波澜不惊，富士康依然一家独大，光宝将敦南的CMOS摄像模组组装产能转移到光宝集团内部。三星电机和LG INNOTEK都提高了出货量，原本全球第一大的夏普沦落到全球第三，随着诺基亚出货量的萎缩，夏普的出货量还会下降。

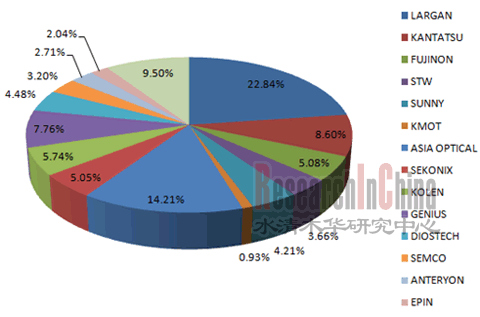

2010年CMOS摄像模组用镜头主要厂家市场占有率（by shipment）

研究整理：水清木华研究中心

In 2010, the output value of CMOS camera module increased sharply over 2009, mainly attributable to the following three aspects:

Firstly, the pixel value of mobile phone camera has risen remarkably, and 2-megapixel has become the mainstream. It is expected that 3-megapixel will take the lead in 2011, and 5-megapixel will become the mainstream in 2013.

Secondly, the shipment of smartphone has increased substantially. The camera pixel value of smartphone exceeds 3-megapixel on average, which is far higher than that of ordinary mobile phones.

Thirdly, the all-round promotion of 3G network makes video call possible, bringing a lot of dual-camera mobile phones to the market.

In the field of CMOS sensor in 2010, Omnivision with BSI technology was hailed by Apple and became the exclusive supplier of iPhone. As a result, its shipment and revenue increased substantially, the operating profit increased by more than 15 folds, and its No.1 position in the industry has been further consolidated. In 2011, Apple iPad 2 will adopt dual cameras, and the shipment of iPhone will rise considerably. Apple has ordered all BSI products of Omnivision.

BSI has become a new standard of CMOS sensor. BSI technology was developed by Sony and further promoted by Omnivision through TSMC. Manufacturers like Samsung, SETI and APTINA are following suit. During the technology migration period, the capacity might fall short of the demand, especially in the case of the CMOS sensor for notebook, which makes meager profit and the manufacturers are reluctant to produce. It is expected that the supply of CMOS sensor will be pinched throughout 2011.

In the field of CMOS camera lens, Taiwanese enterprises are becoming stronger despite intensifying competition, while their Japanese counterparts lag behind. Largan Precision has consolidated its dominant position in the industry, way ahead the runner-up, Asia Optical, in revenue. Thanks to Ether Optronics, the mainland-based subsidiary, Asia Optical is getting increased in shipment. Japanese enterprises are engaged in the cut-throat competition with their Taiwanese peers while facing the pressure of JPY appreciation. Most Japanese enterprises are USD10 billion-level giants, and they won’t provide too much support for CMOS camera lens accounting for less than 1% of their revenue. Take KMOT for example, its revenue from CMOS camera lens business in 2010 shrunk to one third of 2009. The same went for Fujinon, and other Japanese enterprises might quit the field.

On the CMOS camera lens market in 2010, Genius Electronic Optical did a great job. In 2005, Genius Electronic Optical was acclaimed because of the glory of Motorola V3 series. In 2006-2009, Genius Electronic Optical suffered hard blows during the consecutive 4 years. But in the second half of 2009, Genius Electronic Optical passed the supplier authentication of Apple, becoming Apple’s second largest supplier of CMOS camera lens. In 2010, the revenue of Genius Electronic Optical rose by nearly 250%. And it is expected that the revenue of the enterprise in 2011 will increase by more than 5 folds over 2009, with the gross margin climbing up to 22% from -3%.

In the field of CMOS camera module assembly in 2010, Foxconn continued to be the leader in this industry. Both Samsung Electro-Mechanics and LG INNOTEK increased their shipment, shoving Sharp from the first place to the third place. With the contracted shipment of Nokia, the shipment of Sharp will decrease further.

Key CMOS Camera Lens Manufacturers by Shipment, 2010

Source: ResearchInChina
