　　不同于传统的硅半导体（Silicon Semiconductor），GaAs属于化合物半导体（Compound Semiconductor），又称III-V族半导体，主要用在手机射频前端，如PA。进入4G时代，手机的射频前段变得更加复杂，4G设备的射频前端成本大约为9-11美元，是3G系统的两倍，是2G系统的6倍。手机射频系统主要元件包括收发器Transceiver、功率放大器Power Amplifier、滤波器Filters和Antenna Switches。2011年此市场规模大约为38亿美元，预计到2016年达到50亿美元。

　　以4G版本的iPad 为例，其使用了多达19个射频前端元件，主要包括7个PA，1个收发器，2个天线开关模块（ASM）。其中AVAGO提供3个PA，分别对应LTE的3个波段。Skyworks提供2个，分别对应3G的两个波段。Triquint提供1个PA，其内部包含3个独立的PA裸晶（Die），对应2G的4个波段。还有一个PA包含在日本Murata提供的ASM中。4G版本iPad的两个ASM都由Murata提供，此外Broadcom的BCM4330负责802.11/Bluetooth/FM，此SiP的IC里包含了Skyworks提供的GaAs pHEMT功率放大器。

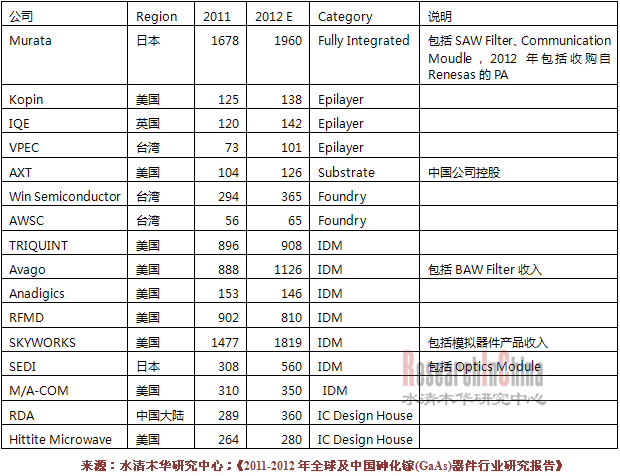

2011-2012年全球GaAs厂家收入排名（单位：百万美元）

　　日本的Murata是全球最大的MLCC厂家，也是第一大通讯模块厂家，包括蓝牙模块、WLAN模块等。同时Murata还是全球第二大SAW滤波器厂家，全球第一大天线开关厂家。2012年3月1日，Murata完成对Renesas旗下PA事业部的收购，从而进军PA市场，Murata在手机射频市场具备最齐全的产品线。

　　Kopin、VPEC、IQE则是全球三大GaAs Epilayer厂家，三家合计的市场占有率超过60%。Kopin和VPEC是采用MOCVD法生产，IQE是MBE法。GaAs基板厂家公开上市的只有AXT一家，其总部虽然在美国，但是早在2003年该公司就被一家大连的中国公司收购，其制造基地位于北京。

　　Win Semiconductor（全懋）是最大的GaAs 晶圆代工厂，主要客户是AVAGO。AWSC主要客户是Skyworks，不过Skyworks自己也拥有GaAs 晶圆厂，只有在产能不足时，才外包生产。Anadigics是最小规模的GaAs IDM厂，2011年其收入下滑了29%。

　　RFMD曾经是全球第一大PA厂家，但是过分依赖大客户。2008财年，诺基亚占了其收入的59%，摩托罗拉占了14%。诺基亚在3G时代和智能手机时代快速下滑，RFMD也因此转型缓慢，业绩也随之下滑，2011年收入下滑大约17%。

　　SKYWORKS则如日中天，全球前10大手机厂家都是其主要客户，其客户分布最为合理，技术也最优秀。AVAGO则是后起之秀，专供3G和4G领域。AVAGO在2008年收购Infineon的BAW部门使其在BAW Filter领域市场占有率达65%，而BAW Filter是手机中价格最高的射频前端部件。未来AVAGO与Skyworks将一争高下。

　　SEDI是日本住友电工旗下的子公司，住友电工是全产业链厂家，从最上游的Substrate到下游的IC，全部覆盖。SEDI的产品主要是对应Base staion的PA。

　　RDA是中国大陆厂家，依托大陆强大的白牌（Grey）手机制造业迅速发展，2011年收入增幅达51.3%，在白牌手机的PA、蓝牙、FM Turner、DVB-S Tuner市场均为中国第一，FM Turner和DVB-S Tuner市场占有率超过50%。
