2011-2012年全球及中国功率器件行业研究报告 >> 水清木华研究中心

2011-2012年全球及中国功率器件行业研究报告包括以下内容：
1、功率器件简介
2、全球及中国功率器件市场
3、功率器件产业
4、IGBT、SiC与GaN市场与产业展望
5、18家功率器件厂家研究

　　功率器件包括功率IC、功率模块和功率分离元件（Power Discrete）。功率分离元件目前主要包括MOSFET、Diode、IGBT。功率器件领域最火热的话题莫过于SiC与GaN，它们吸引了大量的风险投资机构进入，这两项技术相对目前的硅半导体都具备非常明显的优势。

　　目前来看GaN的优势更明显。SiC比GaN最佳工作电压更高，最佳工作功率更高。SiC应用范围比较窄，局限在PFC(Power Factor Correction)、智能电网（Smart Grid）、轨道交通列车（Railcar）、海上风电（Offshore Wind Power）、PV和工业驱动领域。对于HEV、EV和PHEV市场，SiC相比GaN缺乏竞争力。HEV是目前市场主流，被丰田垄断，而丰田倾向于采用GaN而非SiC，当然在2015年之前IGBT还是主流。

　　轨道交通将是SiC市场增长的主要动力来源，日本三大SiC厂家三菱、东芝和日立都是全力以赴开发此市场，三菱动作最迅速。轨道交通市场最大市场在中国，中国投资高达2万亿投资轨道交通，仅2012年9月5日一天就批准了2476公里的轨道交通项目，目前有大约4300公里的轨道交通项目获批或在建，该领域SiC市场将被日本厂家主导。PV Inverter领域，目前PV产业陷入冰冻期，厂家对成本控制非常严厉，SiC成本太高，不可能进入此领域，目前还是IGBT为主流。

　　理论上GaN与SiC市场重合度很高，不过GaN应用范围很广，包括低于40V的消费类电子产品，这就意味着GaN有着很广阔的市场空间，而SiC最少也要600V以上。GaN目前的瓶颈就是耐压不高，不过这种状况正在改善。600V以上应用市场目前还需要技术突破，不过预计2013年可以突破。

　　GaN领域，风险投资火热，而SiC领域主要是日本厂家，甚少风险投资参与。在GaN市场上，Transphorm无疑是投资人的关注焦点，该公司从2009年开始，已陆续从Google创投（2000万美元）及索罗斯基金管理(Soros Fund Management)获得高达10400万美元的投资，最近的E轮投资达3500万美元，于2012年10月初完成。一向不投资外国企业的日本官方机构产业振兴机构INCJ(Innovation Network Corporation of Japan)也对Transphorm给予500万美元的投资。INCJ持股的Nihon Inter也将配合Transphorm开展量产计划。

　　三星、LG、英特尔、Infineon、NXP、STMicro等大厂都一致看好GaN，丰田旗下的Denso也是如此，纷纷投巨资进军GaN领域。新进的小厂家也不少，加拿大的GaN Systems、美国南卡罗莱纳州的Nitek，以及德国柏林的BeMiTec，日本Sanken也联合Panasonic及古河(Furukawa)计划在2013年量产GaN产品。

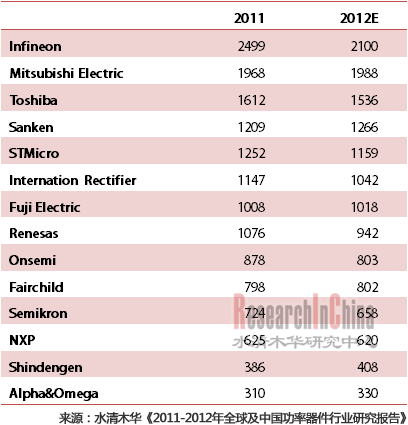

2011-2012年全球主要功率器件厂家收入排名（单位：百万美元）

Global and China Power Device Industry Report, 2011-2012underlines:
1. power device;
2. global and China power device market;
3. power device industry;
4. IGBT, SiC and GaN market and industry outlook;
5. 18 power device players;

The power device is composed of power IC, power module, and power discrete. The power discrete mainly consists of MOSFET, Diode and IGBT. SiC and GaN, the spotlight in the power device industry, have attracted a great many of venture capital institutions to tap into the market. Compared to silicon semiconductor, the SiC and GaN technologies have more distinct competitive edges.

Thus far, GaN has more distinctive advantages over SiC in terms of optimum operating voltage and optimum operating power. The application of SiC is limited in PFC (Power Factor Correction), smart grid, railcar, offshore wind power, PV and industrial driving field. While in HEV, EV and PHEV markets, SiC is less competitive than GaN. HEV is currently the mainstream in the market and is monopolized by Toyota, which tends to employ GaN instead of SiC. It is very sure that IGBT will remain to hold a dominant position before 2015.

Rail transit is expected to be a big driver for SiC market growth. Leading Japanese SiC enterprises including Mitsubishi, Toshiba and Hitachi are all making desperate efforts to tap into the market and, in particular, Mitsubishi is the quickest to respond. China, as the main battlefield in the rail transit industry, lavished as high as RMB2 trillion investment in it. On September 5, 2012 alone, 2,476 km rail transit project was approved to build in China. Thus far, some 4,300 km rail transit project was approved or under construction. Japanese SiC enterprises will play a leading role in the industry. As for PV Inverter industry, it sank into freeze-up, resulting in producers’ rigid grip over cost. So it is unlikely for SiC to access the industry because of the overhigh cost. And IGBT is still the mainstream right now.

In theory, the market concentration of GaN and SiC has significant overlap. However, GaN has wider application including in below 40V consumer electronics, indicating that GaN is expected to see huge potential in the market. But when it comes to SiC, the minimum voltage should exceed 600V when being applied in consumer electronics. The bottleneck of GaN is the low withstand voltage, which is improving gradually. In addition, it still needs to make technical breakthrough in above 600V application market, and which is expected to become a reality in 2013.

The GaN field is witnessing a VC fever. But it is not such a case in SiC field which was dominated by Japanese enterprises. In the GaN market, Transphorm is undoubtedly in the spotlight of investors. Since 2009, Transphorm has obtained investment from Google Ventures (USD20 million) and Soros Fund Management as high as USD104 million. And the latest E round VC finished in early October 2012, valuing USD35 million. In particular, Innovation Network Corporation of Japan, a official entity which never showed interest in investing foreign enterprises, invested Transphorm as high as USD5 million. In addition, Nihon Inter with INCJ as one of shareholders, is set to offer support to Transphorm for the mass production.

Magnates including Samsung, LG, Intel, Infineon, NXP and STMicro are all optimistic about the GaN market. And there is no exception for Denso affiliated to Toyota which invested heavily in GaN filed. In addition, emerging venders including Canada-based GaN Systems, America-based Nitek and Germany-based BeMiTec are tapping into the market. Moreover, Sanken is projected to team up with Panasonic and Furukawa to realize the mass production of GaN products in 2013.

Ranking of Global Leading Power Device Players by Revenue, 2011-2012 (USD mln)
