2018-2019年汽车HUD行业研究报告
字数:0.0万 页数:0 图表数:0
中文电子版:9000元 中文纸版:4500元 中文(电子+纸)版:9500元
英文电子版:2800美元 英文纸版:3000美元 英文(电子+纸)版:3100美元
编号: 发布日期:2019-05 附件:下载

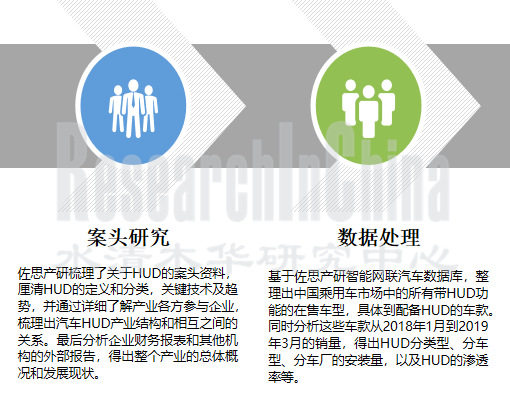

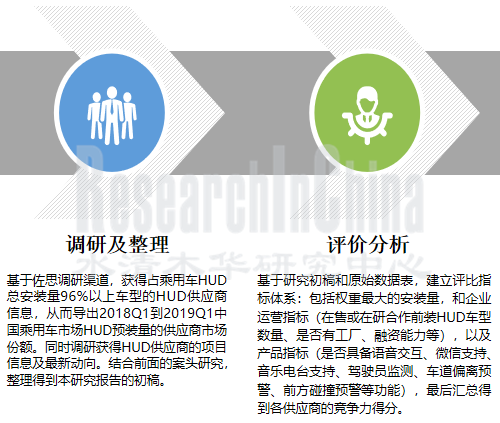

        经过案头研究、数据处理、调研及整理、评价分析等一整套流程,最后得到了2019Q1中国乘用车市场HUD供应商竞争力排名,电装排在全部供应商的第一位,乐驾排在国内供应商的第一位。

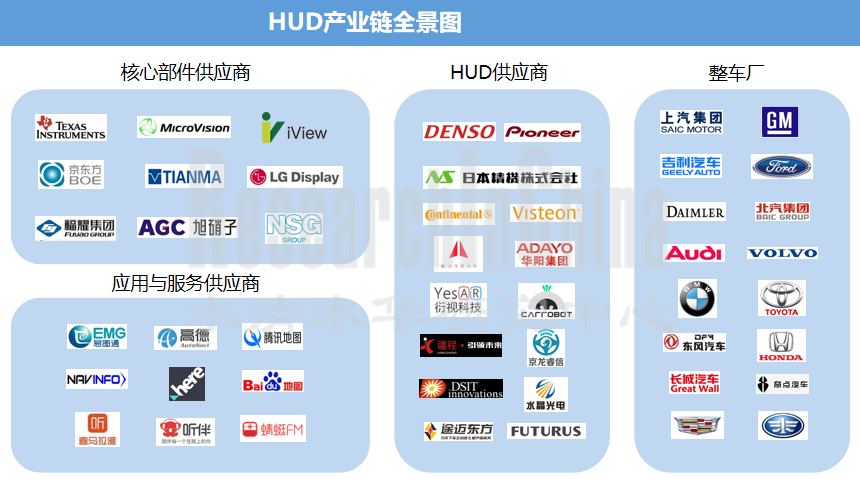

        HUD产业曾经在2014-2015年兴起一波热潮,其中的代表企业就是NAVDY,但是佐思最新整理的HUD产业链全景图中,已经没有了NAVDY的身影。


        NAVDY走的是DLP的技术路线,DLP HUD存在一些短板,设计过于复杂和成本过高。TI的第一代DLP芯片工作温度范围只有 -40-85℃,达不到车规级要求。Navdy从高通和其他几个风投公司成功融到了4200万美元。原本应该2015年一季度正式发售的Navdy HUD,推迟了近两年才与消费者见面。2016年10 月产品正式上市时,价格从预售的299美元飙升至 799 美元。在后装市场推广失败后,2018年,NAVDY不得不进入清算程序。

        2016-2017年,众多HUD创业团队沿袭了Navdy技术路线,采用DLP来作为显示系统,但是遇到很多技术瓶颈,导致产品推出不断延期。最后,多数转而采用TFT显示技术。譬如乐驾科技的第一代HUD产品采用DLP成像方式,从第二代开始采用TFT成像方式。

        2018年,TI正式推出满足车规的第二代芯片DLP 3030-Q1和DLP5530-Q1。相比较前代产品体积更小可视面积更高,满足 AR HUD 场景。DMD DLP3030-Q1在尺寸上有 65% 的降低,PGU 光引擎部分可以做得更小,工作温度范围为 -40-105℃。

        从技术上讲,DLP是目前最优秀最成熟的显示技术。因此,舜宇等大厂依然看好基于DLP 技术的 HUD ,花了几千万引进自由曲面镜生产线。

2018年以来的第二波HUD热潮,主要是由于AR HUD的兴起。

        AR HUD是增强现实抬头显示技术,它可以在驾驶员视线区域内合理叠加显示一些驾驶信息,并结合于实际交通路况当中。与HUD相比,AR HUD显示的范围更大,距离更远,而且更为复杂。前者只是投射并显示信息的设备,而AR HUD则需要和ADAS系统深度整合,以实现更高级的效果和功能。

        正因为AR HUD能够实现与ADAS系统的深度整合,而已经成为汽车智能化刚需的ADAS发展迅猛,从而带动了对AR HUD的需求。

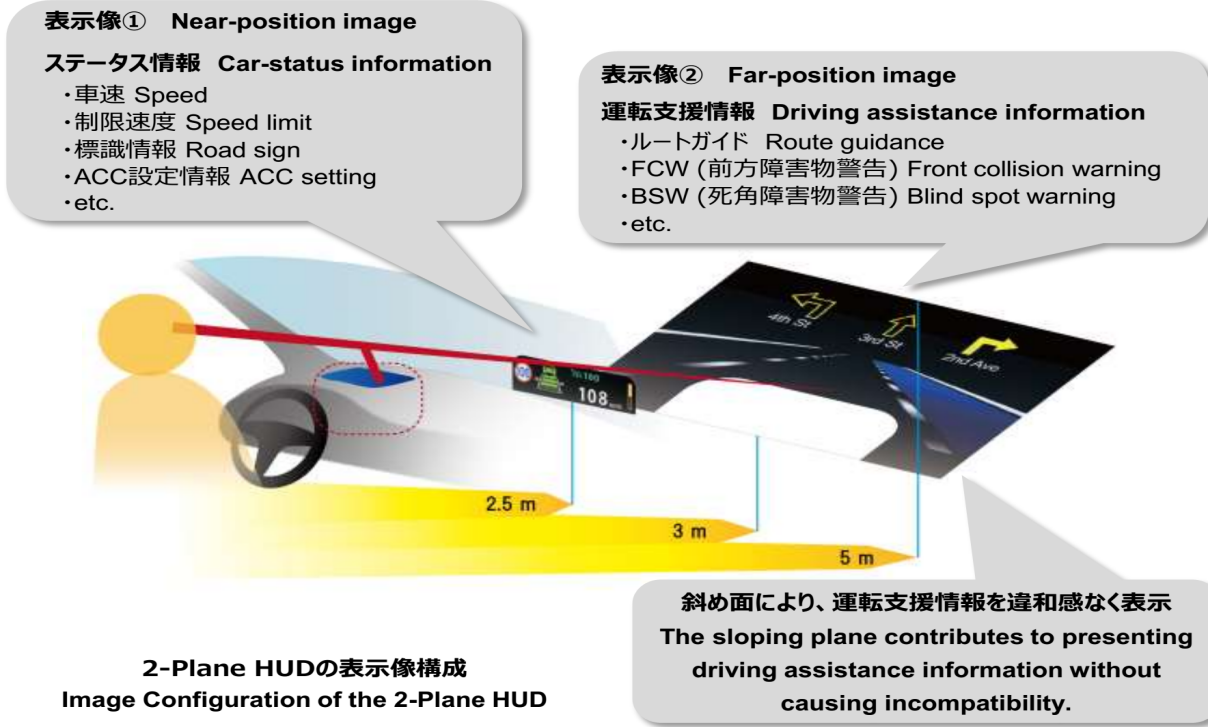

        AR HUD的图像显示一般分为两层或者三层。譬如日本精机的AR-HUD分为三层显示:近场显示层、远场显示层、侧方层。近场显示层主要显示车状态信息,远场显示层显示ADAS信息,还有一个立体的侧方层,显示车道或导航信息。


        在汽车智能网联化趋势下,任何汽车电子产品很难成为一个独立的存在。HUD作为一种汽车电子产品,正成为座舱电子解决方案和ADAS整体解决方案的一部分。

        松下汽车在2019 CES展推出其最新SPYDR 2.0,单芯片驾驶舱域控制器解决方案,集成了HUD和驾驶员监控系统(DMS)。SPYDR 2.0可以将车载信息娱乐系统(IVI)、仪表盘、环视系统、主动降噪系统(ANC)、HUD以及4个娱乐系统显示器集成在一个平台上。

        在这种集成化趋势下,传统Tier1巨头有天然竞争优势,独立HUD供应商则需要与其他产品供应商达成紧密合作关系。疆程+百度、乐驾+联通、乐驾+思必驰等合作模式,正是顺应集成化趋势的举措。


Automotive Head-up Display (HUD) Industry Report: Installation of OEM HUD for Passenger Cars Soared by 94.1% Year on Year in China in 2018

In 2018, 308,900 units of OEM HUDs were installed in passenger cars in China, a 94.1% upsurge from a year earlier, according to our recent report -- Automotive HUD Industry Report, 2018-2019.

We worked out 2019Q1 lists of passenger car HUD supplier ranking by competitiveness with efforts from secondary research, data processing, and investigation & integration to evaluation & analysis. Denso came to the top spot among all suppliers and CarRobot ranked first among Chinese suppliers.

 HUD 1_副本.png


HUD was in vogue from 2014 to 2015. NAVDY that was a typical supplier then, however, doesn’t appear on our latest HUD industry chain.

 HUD 2_副本.png

NAVDY followed a digital light processing (DLP) technology roadmap, but DLP HUD had some drawbacks like complicated design and high cost. In TI’s case, its first-generation DLP chip only worked at temperatures of -40-85℃, short of automotive standards. Navdy raised USD42 million from Qualcomm and several other venture capital firms. Navdy HUD which should have been launched in the first quarter of 2015 came out just in recent two years. In October 2016, the product was put on sale, but its price surged to USD799 from the pre-sale price of USD299. In 2018, NAVDY had to go into liquidation after its failure in aftermarket.

Many a HUD start-up applied Navdy’s technology between 2016 and 2017. Using DLP as display system only left them a range of technology bottlenecks and often deferred launch of products. Most of them then turned to thin film transistor (TFT) display technology. Examples include CarRobot who designed its first-generation HUD with DLP technology but changed to TFT for its second-generation products.

In 2018, TI officially rolled out the 2nd-generation automotive chips DLP3030-Q1 and DLP5530-Q1 featuring smaller size and wider field of view and sufficing for AR head-up display (HUD). DLP3030-Q1 sees the digital micromirror device (DMD) footprint reduction by 65%, enabling smaller picture generation unit (PGU) design. It can operate between -40°C and +105°C

Technically, DLP is the best and most mature display technology by far. Therefore, Sunny Optical and other giants are still optimistic about HUD based on DLP technology, and they even spend tens of millions of yuan on introducing free-form surface mirror production lines.

The second HUD craze since 2018 arises from the emergence of AR HUD.

AR HUD, the augmented reality head-up display technology, superimposes some driving information in the driver's field of vision reasonably and combines it with real traffic conditions. Compared with HUD, AR HUD displays a wider range from a farther distance, and it is more complex. HUD is just a device that projects and displays information, while AR HUD needs to be deeply integrated with ADAS to achieve more advanced effects and functions.

Given the deep integration of AR HUD with ADAS, the burgeoning development of ADAS as a must for automotive intelligence has driven the demand for AR HUD.

 The image display of AR HUD is generally distributed in two or three layers. For instance, the AR-HUD of Nippon Seiki boasts three layers: the near field display layer, the far field display layer, and the side layer. The near field display layer is mainly a presentation of vehicle status, the far field display layer displays ADAS information, and the stereo side layer offers lane or navigation information.

 HUD 3_副本.png

Amid the intelligent connected trend of cars, any automotive electronic product is difficult to be independent. As an automotive electronic product, HUD has been an integral of the cockpit electronics solution and the overall ADAS solution.

Panasonic Automotive showcased its latest SPYDR 2.0 at CES 2019, which is a single-chip cockpit domain controller solution integrating Driver Monitoring System (DMS) with Head-Up Display (HUD). Besides, SPYDR 2.0 can integrate In-Vehicle Infotainment (IVI), dashboard, surround view system, Active Noise Control (ANC), HUD and four IVI displays on a platform

For this integration trend, traditional Tier1 giants enjoy first-mover advantages, whereas independent HUD suppliers have to establish close cooperation with other product suppliers. The collaboration modes -- Jiang Cheng + Baidu, Carrobot + China Unicom, Carrobot + AI Speech, etc. just follow the integration trend.
